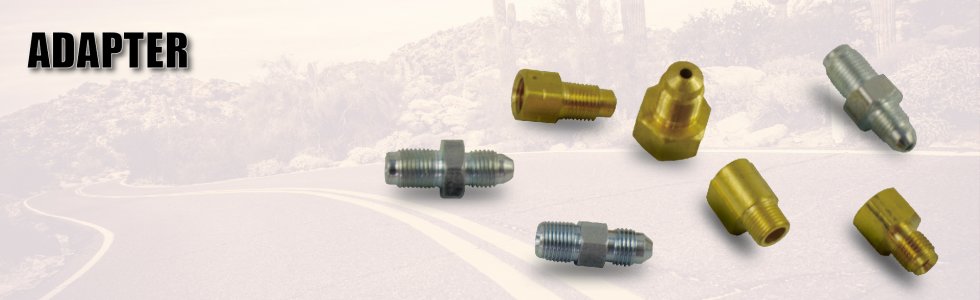

Adapter

KST adapters are used to connect standard brake lines to the different sized ports used in duel master cylinders of the automotive hydraulic braking, fuel, and transmission systems, working with SAE Inverted Double Flare (Domestic and Japanese vehicles) or ISO Bubble Flare (European and British vehicles).

Excellent Features

•    Many different types available, including long, dual and tube styles

•    Corrosion-resistant brass design for a long service life

•    Direct replacement for a proper fit

Material

•    Steel: 12L14, 230Mo7pb, Q215,

•    Brass:  62#, CuZn40, C27400,

•    Stainless steel: 304

Plating

•    Zn-Ni alloy

•    Chrome 3+, White, Yellow, Black, Green

Sizes

Metric Thread M10x1, M10x1.25, M10X1.5, M12x1, M12x1.5, M14x1, M14x1.5, M16x1.5, M18x1.5, M20x1.5, M8x1.25 etc.

Imperial Thread 3/8-24, 3/8-20, 7/16-24, 7/16-20, 5/18, 1/2-20, etc.

The sizes must be selected correctly to match the end form of the tube or port to ensure a proper seal.

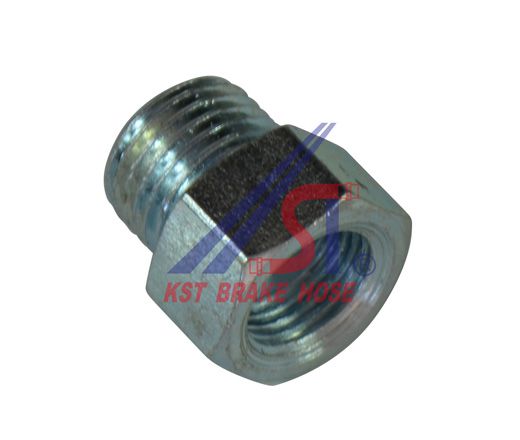

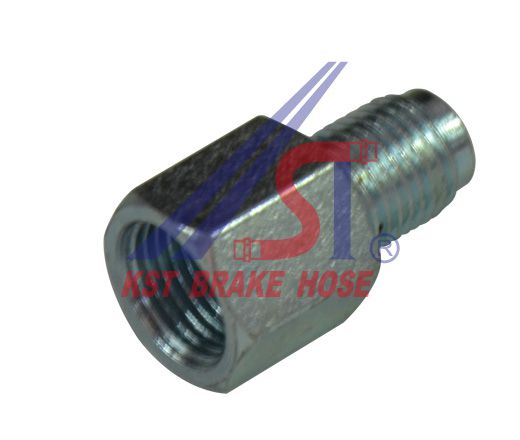

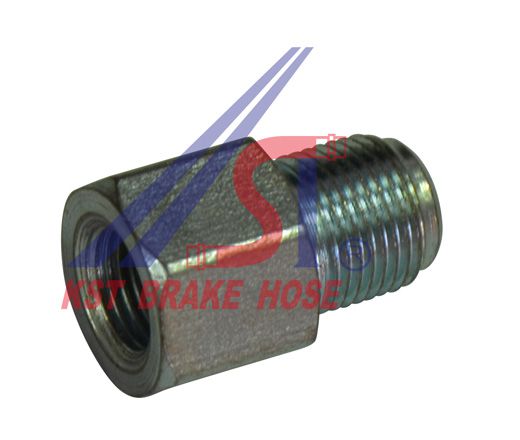

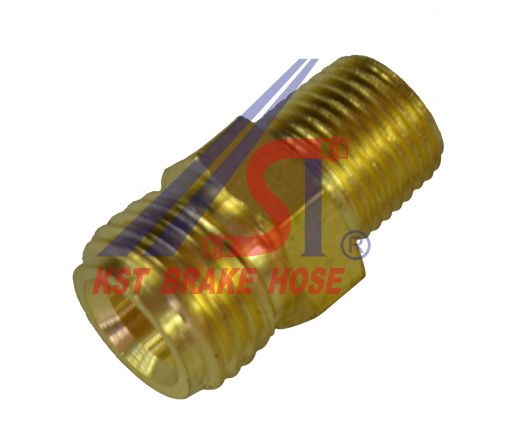

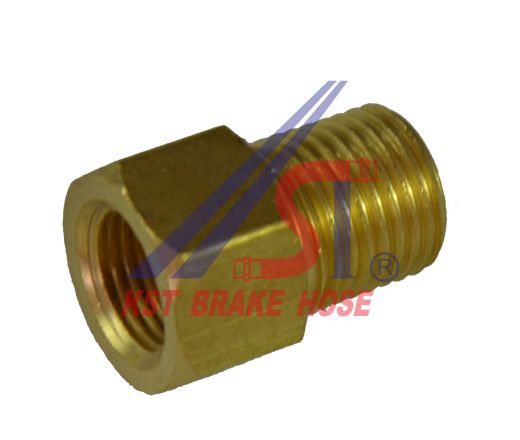

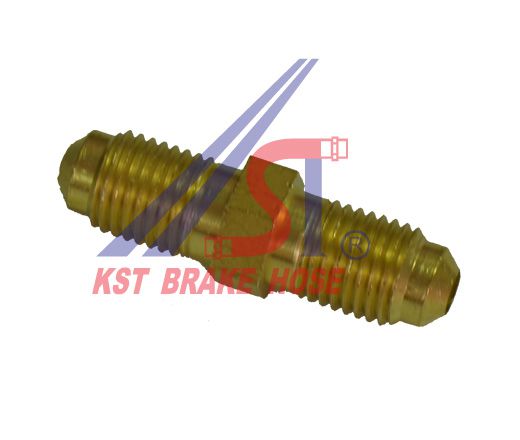

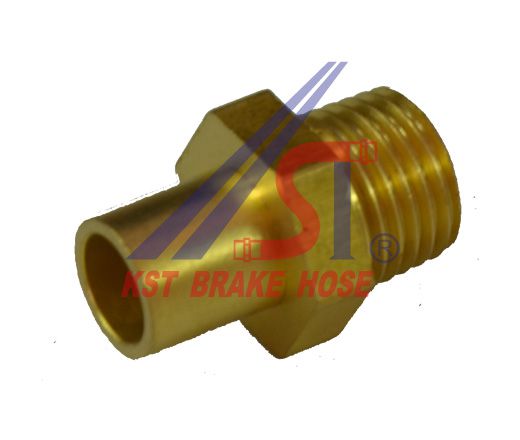

PART NO.	MATERIAL	PLATING	THREAD	SEAT	LENGT H(mm)	PICTURE
KFAD008-2	12L14	WHITE	1/2x20--9/16x18	H17	20
KFAD014	BRASS	N/A	9/16x18--7/16x24	H14	22.5
KFAD016	12L14	WHITE	1/2x20--3/8x24	H16	23
KFAD017	BRASS	N/A	7/16x20--7/16x20	H18	24.5
KFAD024	12L14	WHITE	3/8x24--ZG1/8x28	H13	21.5
KFAD026	BRASS	N/A	M10x1--3/8x24	H13	25
KFAD029-3	BRASS	N/A	3/8x24--3/8x24	H13	22
KFAD029	12L14	WHITE	3/8x24--3/8x24	H14	23
KFAD031	12L14	WHITE	M12x1--M10x1	H16	25
KFAD036-2	12L14	WHITE	M10x1--M10x1--M10x1	H16	47
KFAD045	BRASS	N/A	5/8x18--5/8x18	H16	36
KFAD046	BRASS	N/A	7/16x24--3/8x24	H13	22

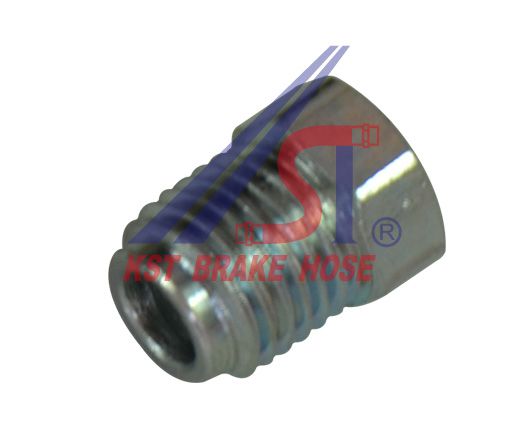

KFAD048	12L14	WHITE	M10x1--M11x1.5	H11	25

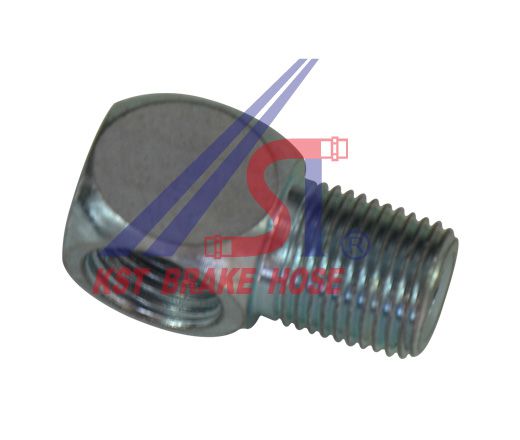

KFAD049	12L14	WHITE	1/8x27NPTF--1/8x27NPTF	W13	26
KFAD052	BRASS	N/A	1/8x27NPT--1/8x27NPT	H11	23
KFAD053	BRASS	N/A	1/2x20--1/8x27NPT	H13	23
KFAD054	BRASS	N/A	1/8x27NPT--1/8x27NPT	W13
KFAD060	BRASS	N/A	1/8x27NPT--1/8x27NPT	H11	17
KFAD066	BRASS	N/A	7/16x20--7/16x20	H13	43
KFAD067	BRASS	N/A	7/16x20--3/8x24	H16	32.3
KFAD068	BRASS	N/A	1/2x20--1/2x20	H14	38
KFAD069	BRASS	N/A	1/4x19NPT	H16	25
KFAD071	BRASS	N/A	3/8x24--M10x1	H13	25.5
KFAD073	BRASS	N/A	7/16x24--M12x1	H17.5	27.5
KFAD074	12L14	WHITE	3/8x24--7/16x24	H13.8	25
KFAD075	12L14	WHITE	3/8x24--M10x1	H14.2	34.8

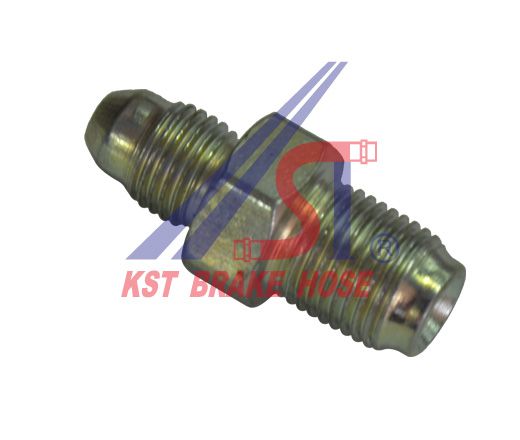

KFAD083	12L14	WHITE	3/8x24--7/16x24	H14.2	33

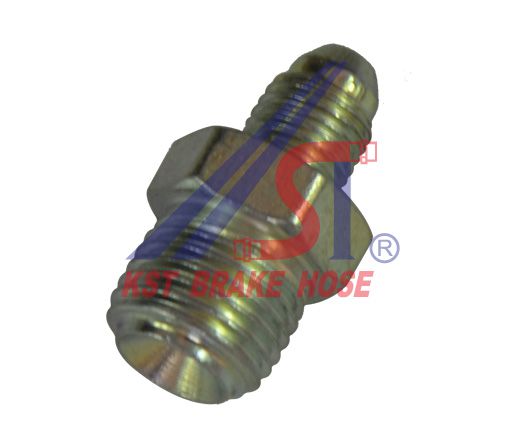

KFAD085	12L14	WHITE	3/8x24--9/16x18	H15.8	30

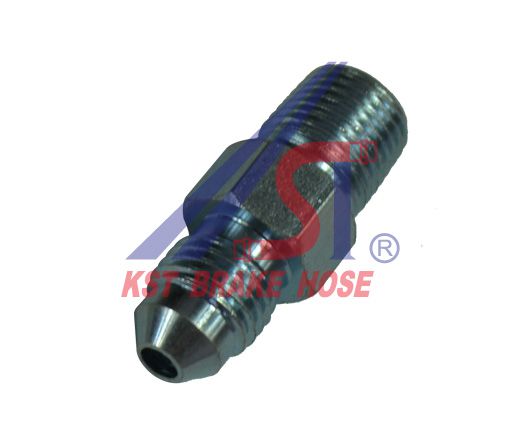

KFAD086	12L14	WHITE	1/8x27--3/8x24	H11.1	28.8

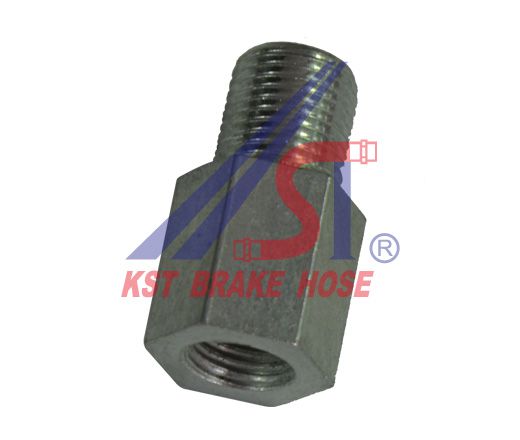

KFAD087	12L14	WHITE	3/8x24--7/16x24	H14.3	28.19

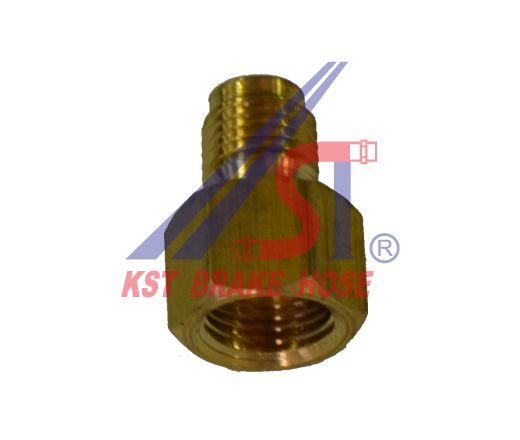

KFAD088	BRASS	N/A	7/16x24--3/8x24	H14	21

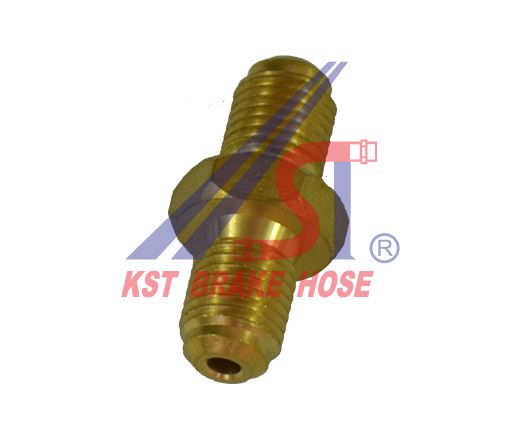

KFAD089	BRASS	N/A	3/8x24--3/8x24	H14.2	31
KFAD106	12L14	WHITE	M10x1.5--M10x1	H14	25

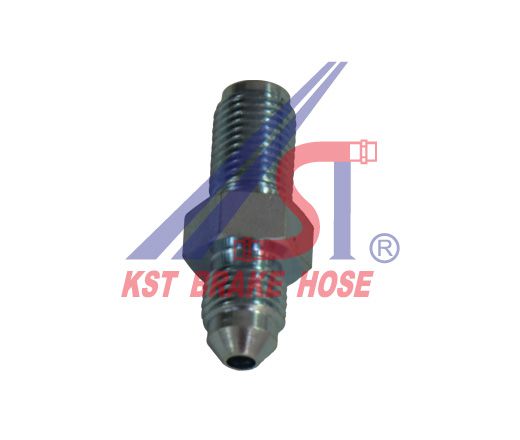

KFAD107	12L14	WHITE

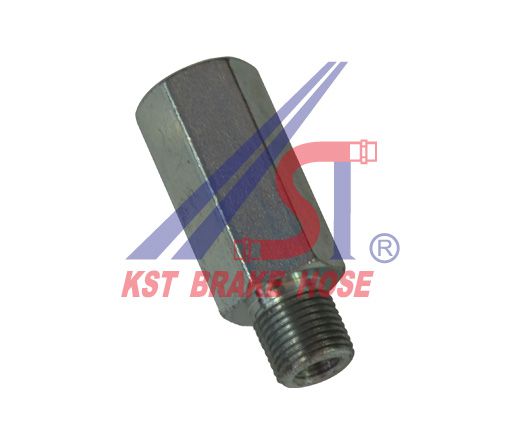

KFAD108	12L14	WHITE
KFAD109	12L14	WHITE

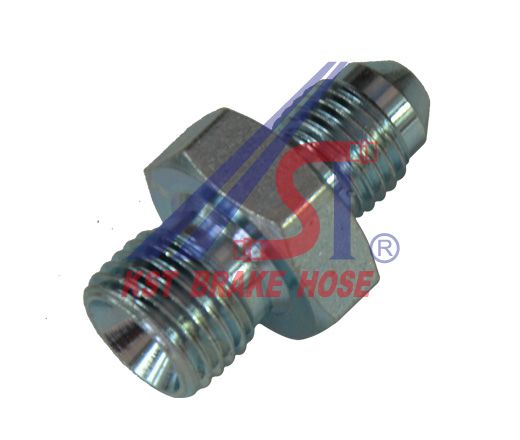

KFAD110	12L14	WHITE
KFAD112	12L14	WHITE
KFAD113	12L14	WHITE

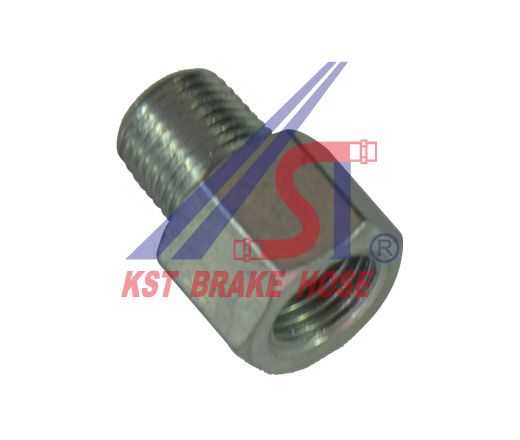

KFAD114	12L14	WHITE
KFAD117	BRASS	N/A

Application

For all vehicles with hydraulic brake system including drum brake and disc brake conversion.

Car, Electric car, Pick up, SUV, Van, Light truck, Middle bus, Boat Trailer, Multi-purpose passenger vehicle (MPV), Light commercial vehicle (LCV), Golf cart, Recreational vehicle, Burden carrier, Tow tractor, Electric tram and cart, Off-road, Racing car, Hot rod, Motorsport, Tuning car, Modified car, Motorcycle, Scooter, ATV, UTV, Three wheeler, Antique car, Vintage car, Classic car etc.
