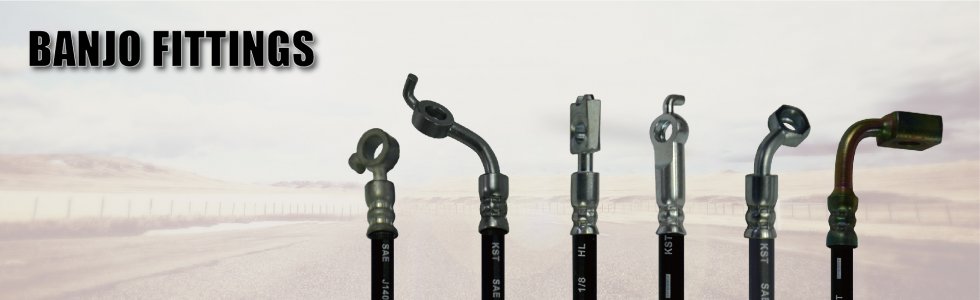

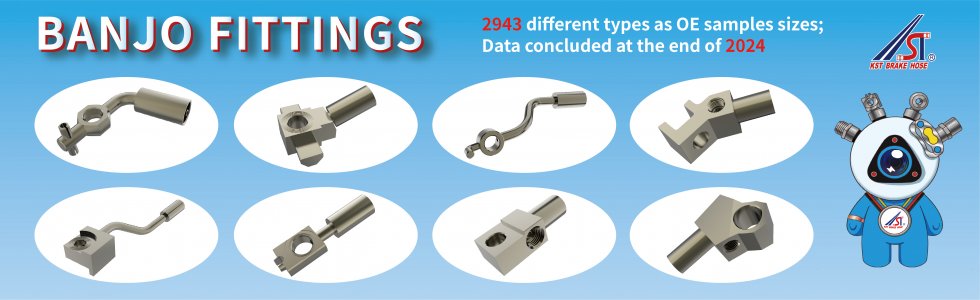

Banjo fittings

KST Banjo fittings are manufactured to high quality standards and are available in various styles of automotive hydraulic lines, including brake fuel, oil, and transmission systems. They are to work with either SAE Inverted Double Flare (U.S and Japanese vehicles) or ISO Bubble Flare (European and British vehicles).

Standard

•    Metric

•    SAE

Range and Type

KST have 1148+ various Banjo fittings in our database with various shapes.  News types are added to the range daily.

Sizes

•    Hole Diameter: Most are 10mm, also available in 11mm, 12mm, 15mm etc

•    O.D.: Round head, available in 17mm-22mm; Block head, available in 17-29mm

•    Bend: 15°, 20°, 30°, 40°, 45°, 60°, 75°, 90°, etc

The sizes must be selected correctly to match the end form of the tube or port to ensure a proper seal.

Production Process

•    Cold forming, CNC, NCPC ( numerically controlled production center )

•    Brass welding and Rivet Pins

Material

•    Steel: 12L14, 230Mo7pb, Q215,

•    Brass:  62#, CuZn40, C27400,

•    Stainless steel: 304

Plating

•    Zn-Ni alloy

•    Chrome 3+, White, Yellow, Black, Green

Excellent Features

•    Effective and attractive prices

•    Corrosion-resistant for long-lasting durability

•    Brake fittings of wide range for all make, all model all year cars

•    CAD and 3D drawing dimensions are CMM measured according to OE hose samples

•    Research & development on new fittings along with new cars all the time

•    Steady raw material suppliers and assembly production process

•    100% inspection of thread Go-No Go Gages

•    100% throughput and surface inspection

•    All Quality Control original documents archive are kept over two years for tracking

Application

For all vehicles with hydraulic brake system including drum brake and disc brake conversion.

Car, Electric car, Pick up, SUV, Van, Light truck, Middle bus, Boat Trailer, Multi-purpose passenger vehicle (MPV), Light commercial vehicle (LCV), Golf cart, Recreational vehicle, Burden carrier, Tow tractor, Electric tram and cart, Off-road, Racing car, Hot rod, Muscle car, Motorsport, Tuning car, Modified car, Motorcycle, Scooter, ATV, UTV, Three wheeler, Antique car, Vintage car, Classic car etc
