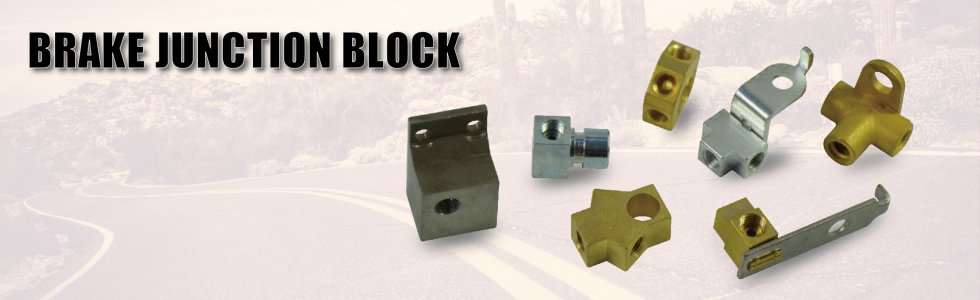

Brake Junction Block

KST brake junction block are used to connect standard brake lines to the different sized ports. We offer a comprehensive line of Brake Line Brass Tees for a range of automotive applications. All our Brake Line Tees are constructed of high-quality materials for long-lasting durability.

Standard

•   Metric

•   SAE

Sizes

Metric Thread M10x1, M10x1.25, M10X1.5, M12x1, M12x1.5, M14x1, M14x1.5, M16x1.5, M18x1.5, M20x1.5, M8x1.25 etc.

Imperial Thread 3/8-24, 3/8-20, 7/16-24, 7/16-20, 5/18, 1/2-20, etc.

The sizes must be selected correctly to match the end form of the tube or port to ensure a proper seal.

KST NO.	MATERIAL	PLATING	THREAD	HOLE	WIDTH	LENGTH	PICTURE
KFST001-3	BRASS	N/A	3--M10×1		21.5	31
KFST001	BRASS	N/A	3--3/8×24		21.5	31
KFST004-2	BRASS	N/A	3--7/16×24		14	26
KFST004	BRASS	N/A	2--3/8×24--7/16×20		19	23
KFST006	BRASS	N/A	2--3/8×24--7/16×24		22	25
KFST010-2	BRASS	N/A	2--3/8×24--7/16×24		20	24

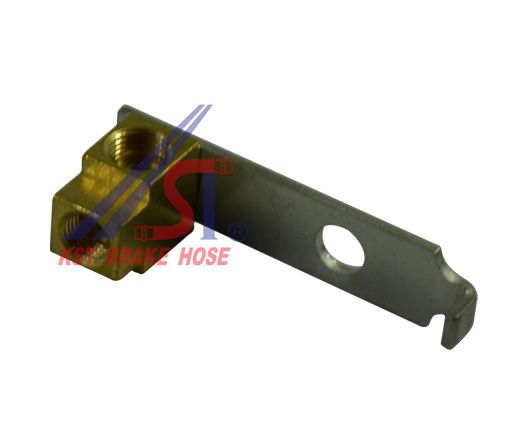

KFST010	BRASS	N/A	2--7/16×24--3/8×24		20	24

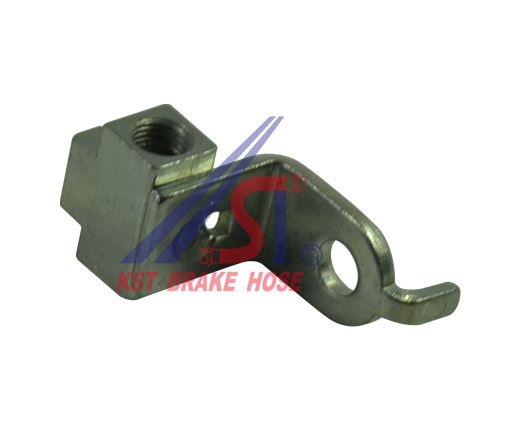

KFST011-2	12L14	WHITE	3/8×24-3/8×24-3/8×24		13
KFST014-2	BRASS	N/A	M10×1-M10×1-M10×1		30	30
KFST015-2	BRASS	N/A	3-3/8×24		29

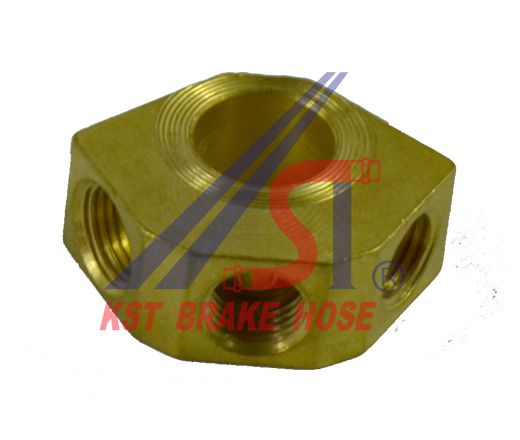

KFST015-3	BRASS	N/A

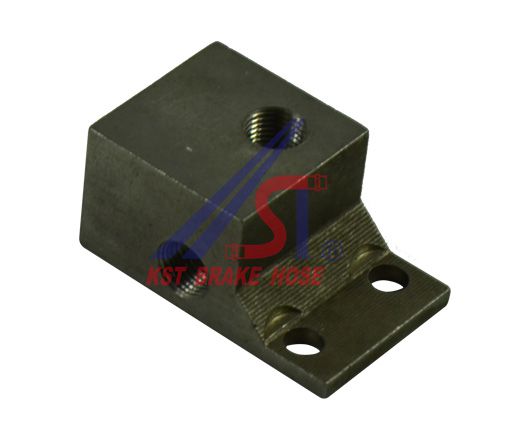

KFST019	304 STAINLESS STEEL	N/A	M10×1-M10×1-M10×1		30	48
KFST020-2	BRASS	N/A

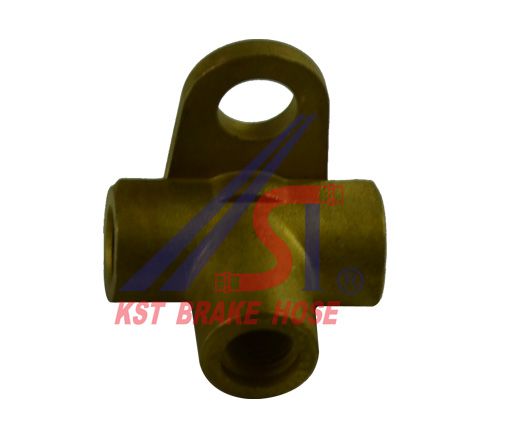

KFST021	BRASS	N/A	3/8×24-3/8×24-3/8×24		35

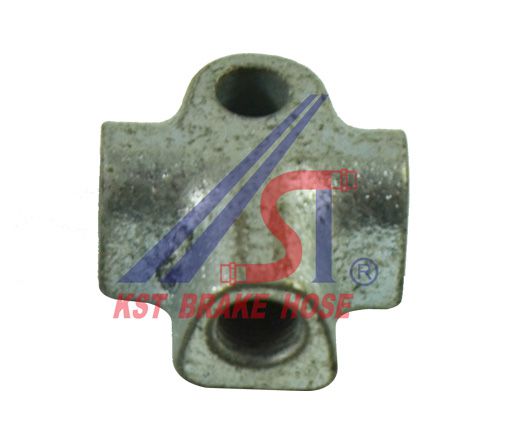

KFST022	12L14	WHITE	3--M10×1	φ8.6	35	39
KFST022	12L14	BLACK	3--M10×1	φ8.6	35	39
KFST023	12L14	WHITE	3/8×24-3/8×24-3/8×24		21.5	30
KFST027	BRASS	N/A	2-7/16×24	φ15	32	31.5

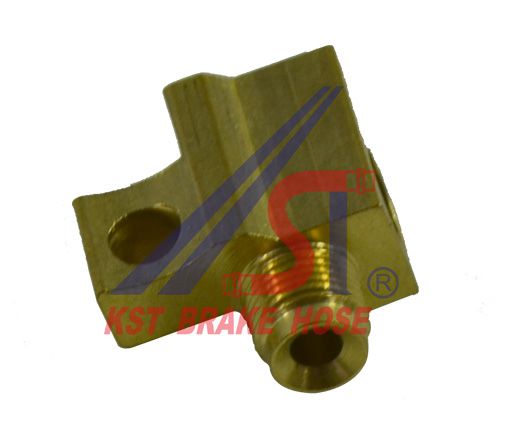

KFST028	BRASS	N/A	3-7/16×24		28

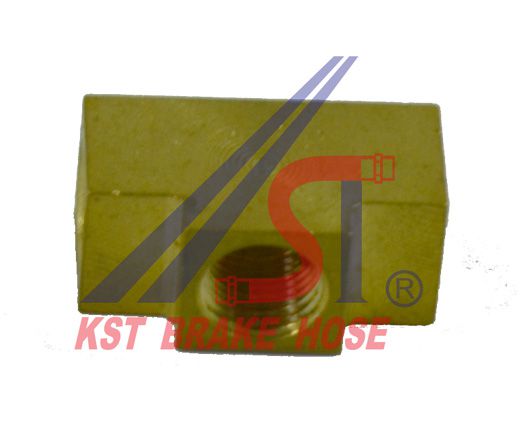

KFST047	BRASS	N/A	2--3/8×24-1/8×27NPT		13	28
KFST052	BRASS	N/A

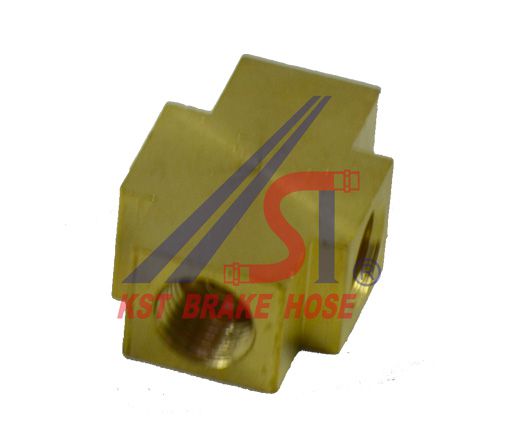

KFST054	BRASS	N/A
KFST055	BRASS	N/A
KGX-001	12L14	GREEN

Excellent Features

•   Available in many different styles, including inverted, flared, trailer, and three-way

•   Manufactured to OE specifications using modern manufacturing techniques

•   Threads conform with the American standard taper pipe thread & resist vibration

Material and Sorts

•   Brass:  62#, CuZn40, C27400

•   Stainless Steel: #304

•   Three way, four way, Tube tees

Application

For all vehicles with hydraulic brake system including drum brake and disc brake conversion.

Car, Electric car, Pick up, SUV, Van, Light truck, Middle bus, Boat Trailer, Multi-purpose passenger vehicle (MPV), Light commercial vehicle (LCV), Golf cart, Recreational vehicle, Burden carrier, Tow tractor, Electric tram and cart, Off-road, Racing car, Hot rod, Muscle car, Motorsport, Tuning car, Modified car, Motorcycle, Scooter, ATV, UTV, Three wheeler, Antique car, Vintage car, Classic car etc
