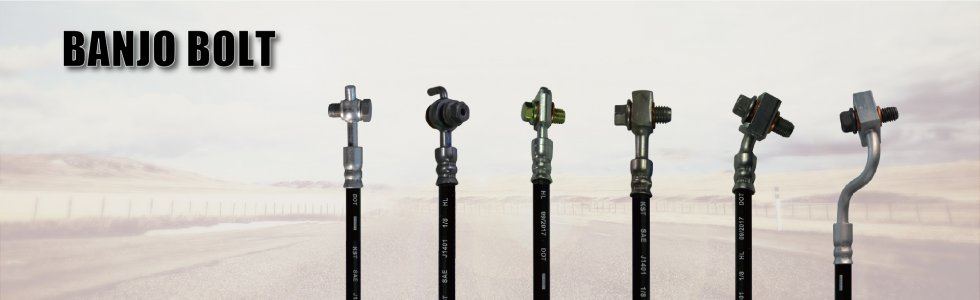

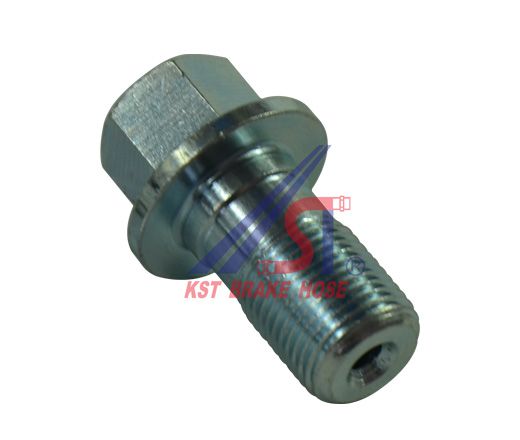

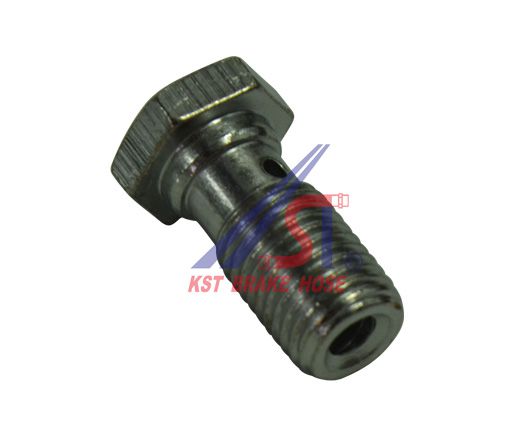

Banjo bolt

Banjo bolt is used with copper washer sealing in brake system. We provide Banjo Bolts of various sizes for all applications. All our banjo bolts are made of high-quality materials for high performance, durability and reliability. Hardening and Tempering is 8.8.

Standard

•    Metric

•    SAE

Excellent Features

•    Available in various thread sizes and lengths

•    Made with the latest production and advanced technologies in compliance with global quality parameters

•    smooth finish and resistance to corrosion, abrasion & extreme pressure

•    Direct replacement for a proper fit

Sizes

Metric Thread M10x1, M10x1.25, M10X1.5, M12x1, M12x1.5, M14x1, M14x1.5, M16x1.5, M18x1.5, M20x1.5, M8x1.25 etc.

Imperial Thread 3/8-24, 3/8-20, 7/16-24, 7/16-20, 5/18, 1/2-20, etc.

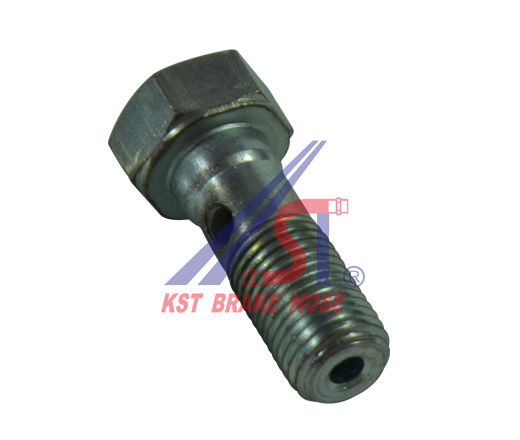

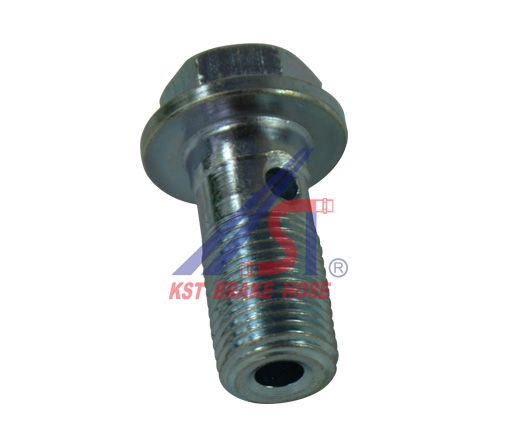

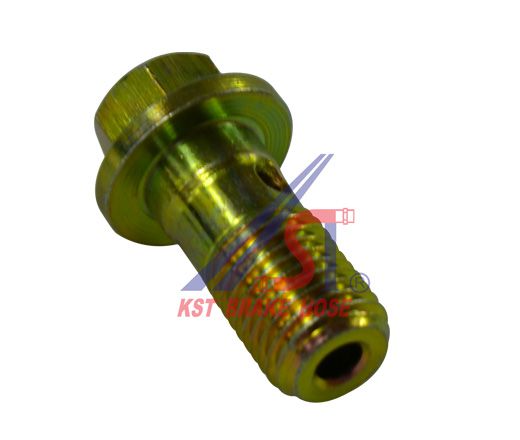

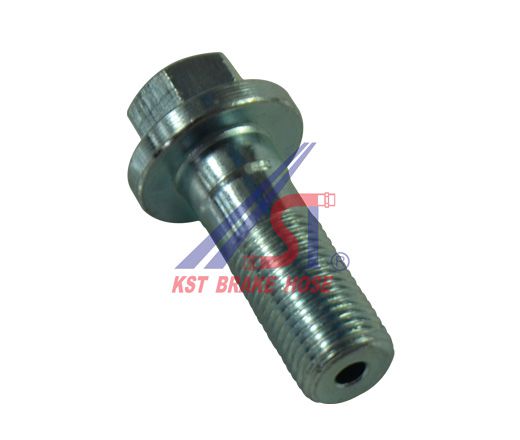

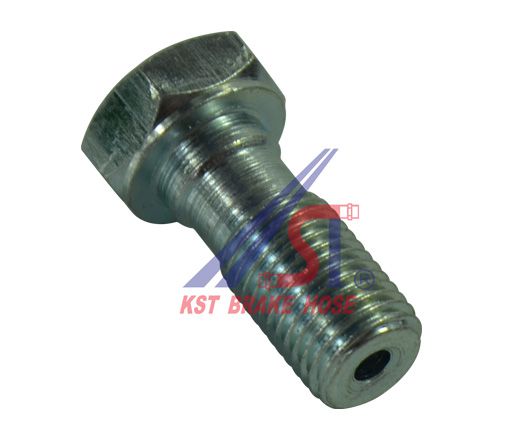

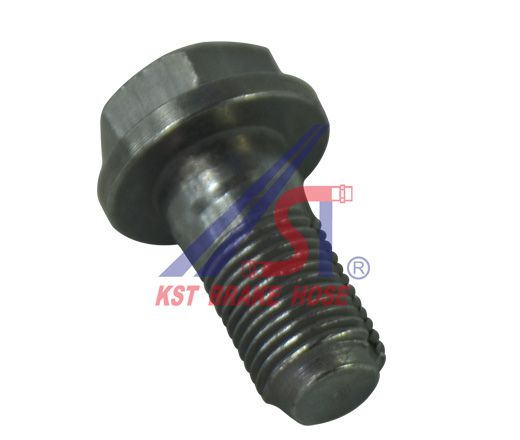

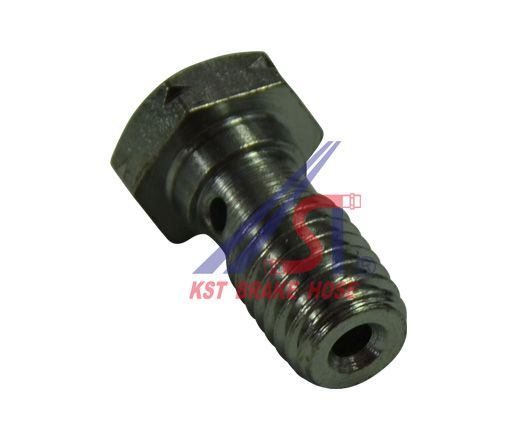

KST NO.	MATERIAL	PLATING	THREAD	SEAT	LENGTH	PICTURE
KFBB001	1045	WHITE	M10×1	H14	34

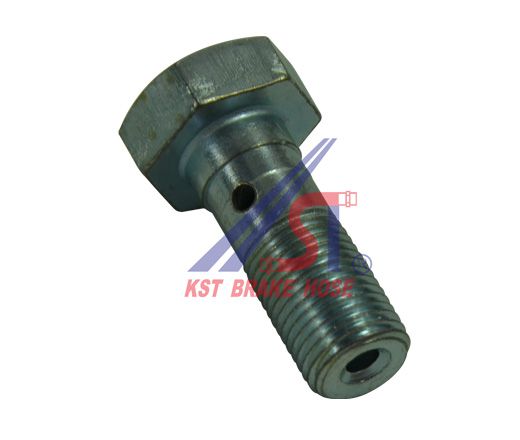

KFBB002-2	1045	WHITE	M10×1	H16	34
KFBB002-5	1045	WHITE	7/16×20	H16	33.7
KFBB002	1045	YELLOW	7/16×20	H16	34
KFBB003	1045	WHITE	3/24×24	H14	28

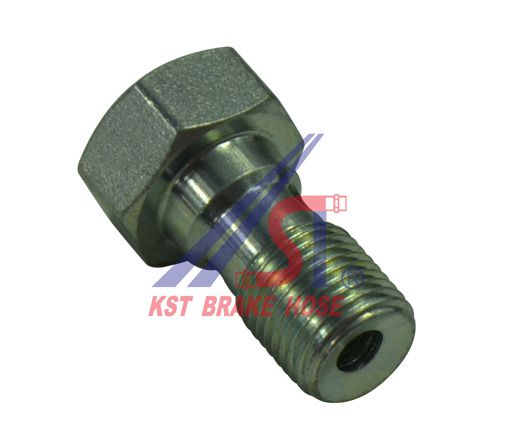

KFBB004-2	1045	WHITE	3/8×24	H16	28

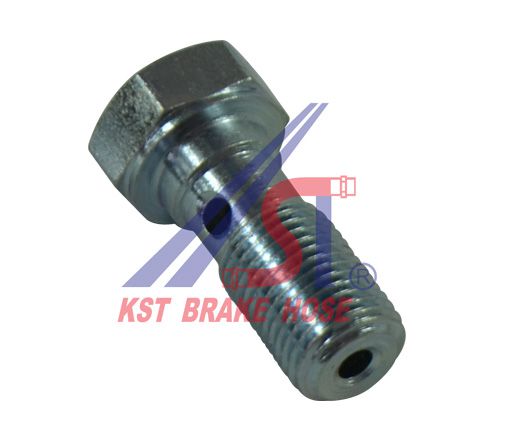

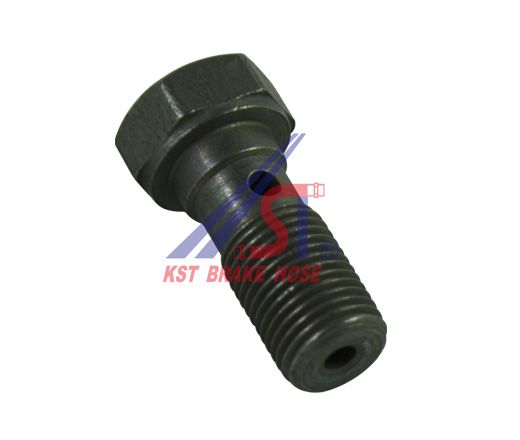

KFBB005	1045	WHITE	M10×1	H14	27
KFBB005	1045	ZINC-NICKLE	M10×1	H14	27
KFBB007	1045	WHITE	M10×1	H12	29

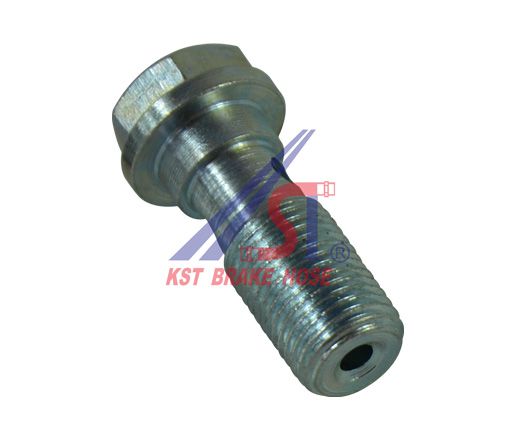

KFBB010	1045	WHITE	M10×1	H12	31.5

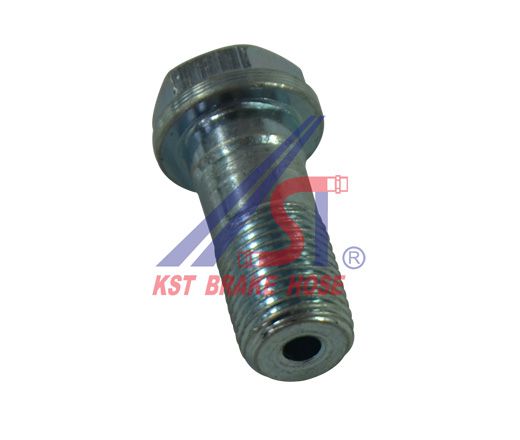

KFBB012	1045	WHITE	M10×1	H12	28
KFBB016	1045	WHITE	M10×1.5	H11	32
KFBB016	1045	YELLOW	M10×1.5	H11	32
KFBB017	1045	WHITE	3/8×24	H14	29
KFBB019-2	1045	WHITE	3/8×24	H14	25

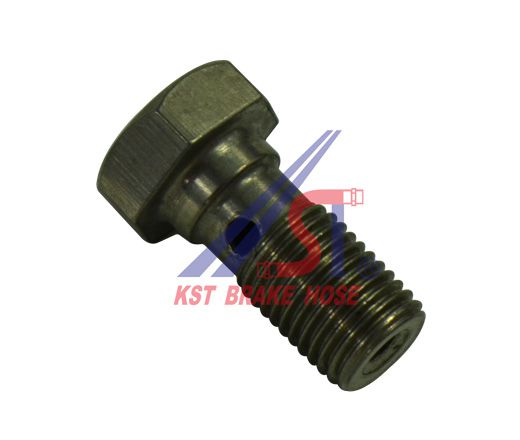

KFBB019-2	SS304	N/A	3/8×24	H14	25

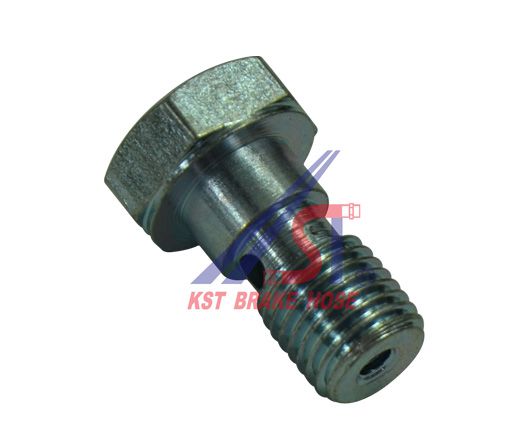

KFBB021	1045	WHITE	7/16×20	H17	28

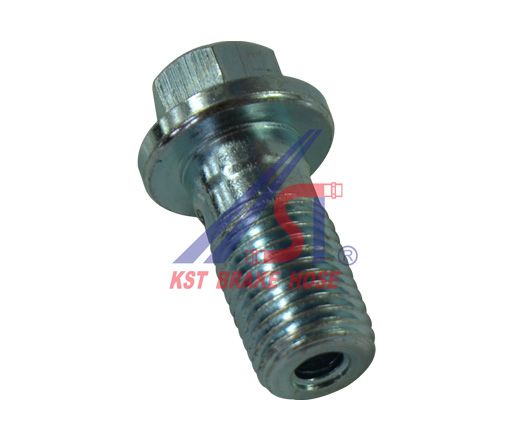

KFBB023	1045	WHITE	7/16×20	H11	32

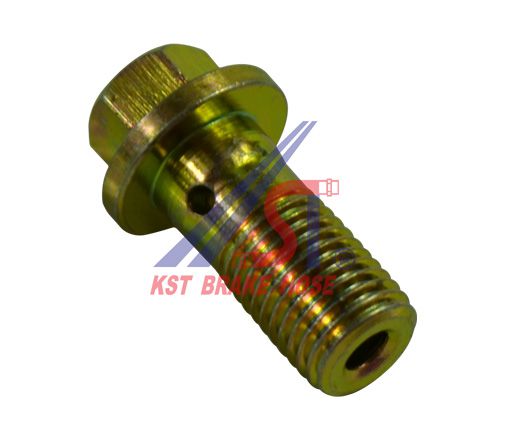

KFBB023	1045	YELLOW	7/16×20	H11	32

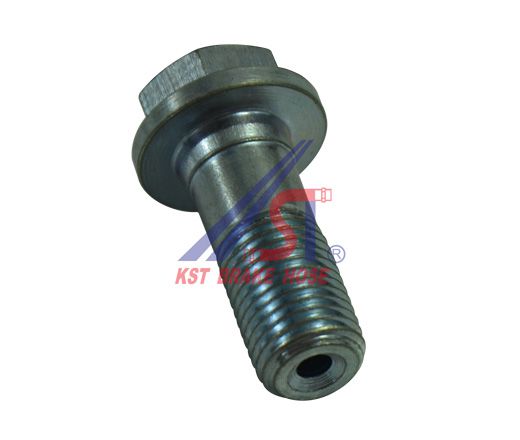

KFBB025	1045	WHITE	3/8×24	H12	31

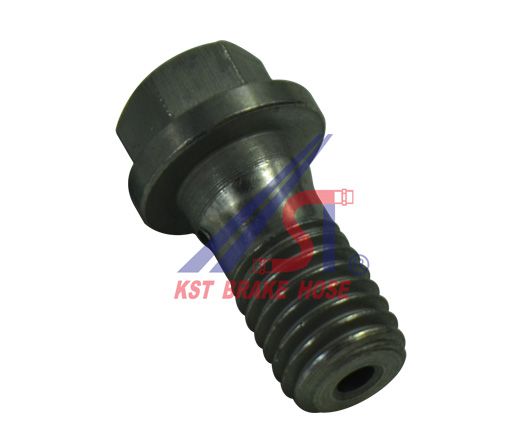

KFBB026	1045	WHITE	M10×1.5	H11	28
KFBB026	1045	ZINC-NICKLE	M10×1.5	H11	28

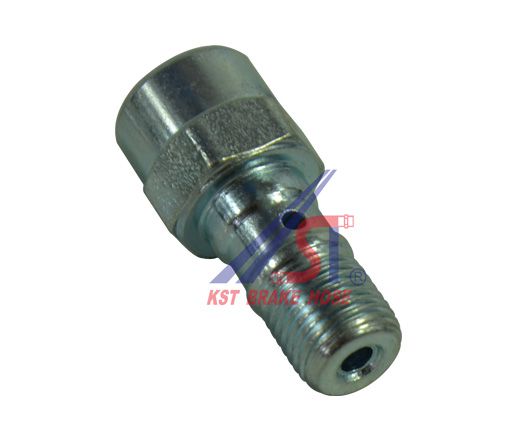

KFBB030	1045	WHITE	M10×1	H14	30.5
KFBB031	1045	YELLOW	M12×1.5	H17	26.5
KFBB037	1045	WHITE	M12×1	H13	28.8

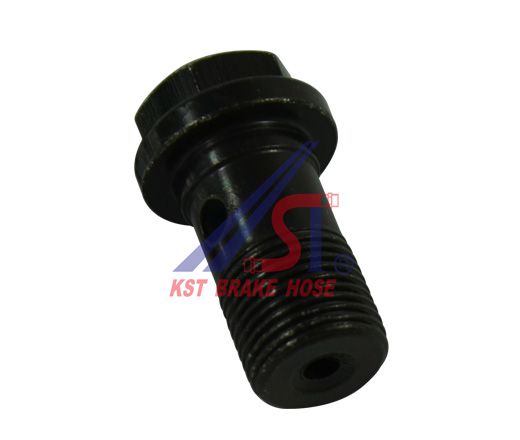

KFBB037	1045	BLACK	M12×1	H13	28.8
KFBB037	1045	ZINC-NICKLE	M12×1	H13	28.8
KFBB038	1045	WHITE	M10×1	H13	21
KFBB038	1045	ZINC-NICKLE	M10×1	H13	21

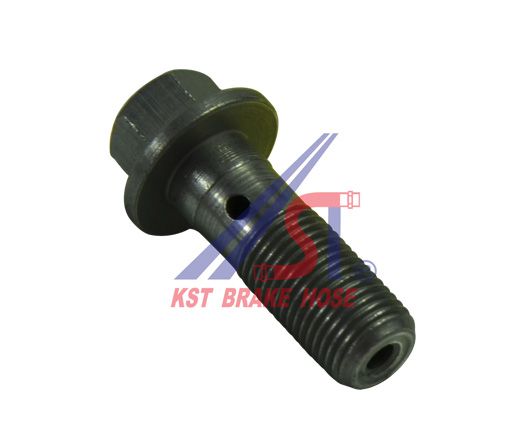

KFBB040	1045	WHITE	M10×1	H11	36.6
KFBB040	1045	ZINC-NICKLE	M10×1	H11	36.6

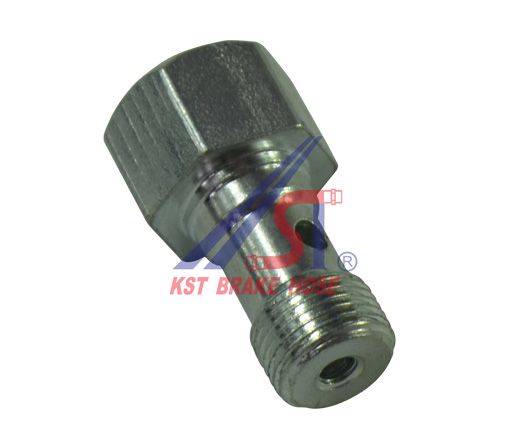

KFBB042	1045	WHITE	M12×1-M10×1	H17	32.5

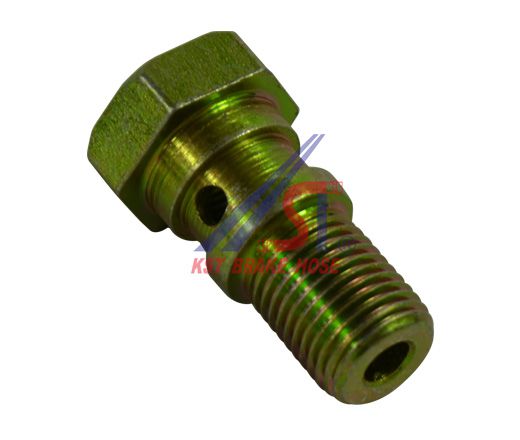

KFBB044-2	1045	YELLOW
KFBB044	1045	WHITE	1/2×20-1/8×27NPT	H19	36
KFBB044	1045	YELLOW	1/2×20--1/8×27NPT	H19	36

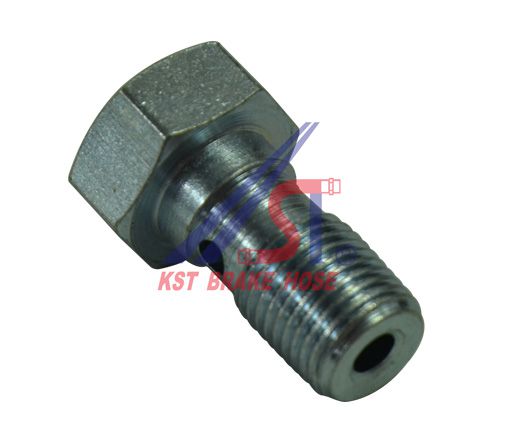

KFBB045	1045	WHITE	7/16×24	H16	28
KFBB046	1045	WHITE	1/2×20	H19	36

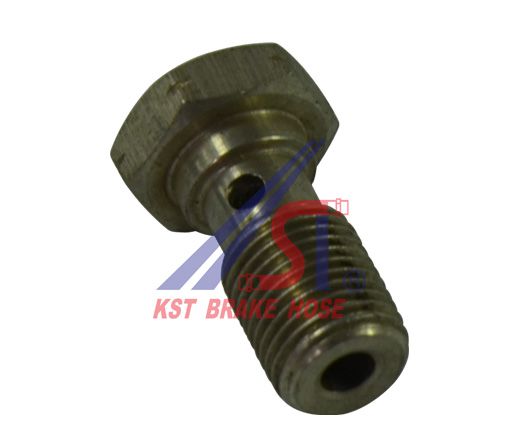

KFBB050	SS304	N/A	M10×1	H14	24
KFBB051	1045	WHITE	M10×1.5	H14	24.5
KFBB053	1045	WHITE	7/16×20	H16	34

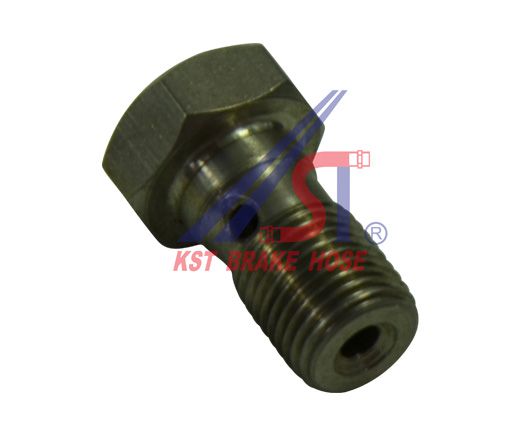

KFBB054	SS304	N/A	M10×1	H14	23.5
KFBB056	1045	NICKLE	7/16×20	H15	26.5
KFBB057	1045	NICKLE	M10×1.5	H14	25

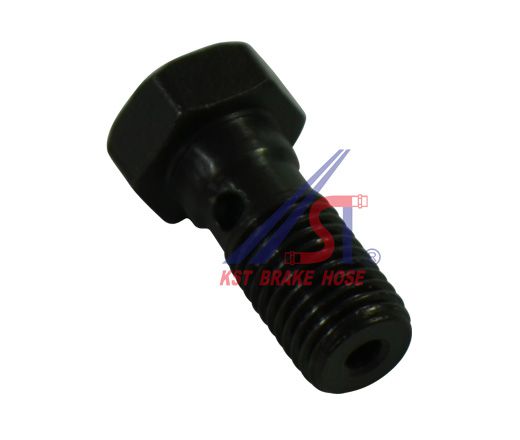

KFBB058	1045	BLACK	M10×1.25	H14	28.1
KFBB059	1045	WHITE	M10×1	H15	30

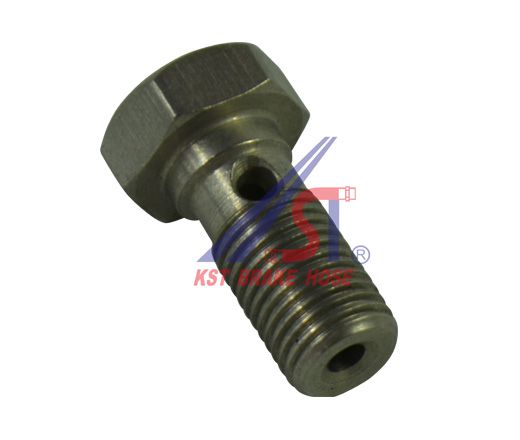

KFBB060	SS304	N/A	3/8×24	H14	25
KFBB061	1045	WHITE	M10×1	H14	22.5
KFBB061	SS304	N/A	M10×1	H14	22.5

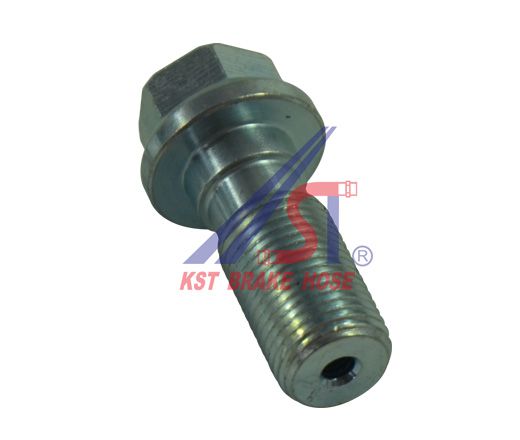

KFBB063	1045	WHITE	7/16×24	H13	27

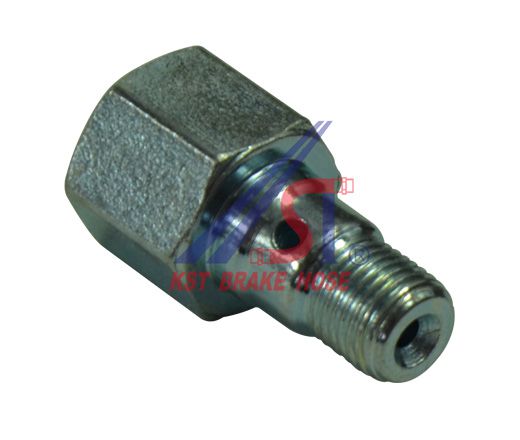

KFBB064	1045	WHITE	M10×1--M10×1	H17	33.5
KFBB069	1045	WHITE

Material

•    Steel: 1045 , 230Mo7pb, Q215,

•    Brass:  62#, CuZn40, C27400,

•    Stainless steel: SS304

Plating

•    Zn-Ni alloy

•    Chrome 3+, White, Yellow, Black, Green

Application

For all vehicles with hydraulic brake system including drum brake and disc brake conversion.

Car, Electric car, Pick up, SUV, Van, Light truck, Middle bus, Boat Trailer, Multi-purpose passenger vehicle (MPV), Light commercial vehicle (LCV), Golf cart, Recreational vehicle, Burden carrier, Tow tractor, Electric tram and cart, Off-road, Racing car, Hot rod, Muscle car, Motorsport, Tuning car, Modified car, Motorcycle, Scooter, ATV, UTV, Three wheeler, Antique car, Vintage car, Classic car etc
