KST brake hose meets below international standards.
• FMVSS 106 DOT
• SAE J1401
• ISO3996
• GB16897-2010
• JIS D2601-2006
• FR31302-1973
• ADR 7
• NTC 977
• TL-VW 82152
• MS-EA70
• ESA-M96D4-A
• GM6403M-2002
| SIZE | NORMARL SIZE | ID | OD | LOW EXPANSION | D.O.T STANDARD | WEIGHT | PACKING | ||||
| ID | OD | MIN | MAX | MIN | MAX | MIN | MAX | 1000psi/1500psi | |||
| 1/8'' | 0.125'' | 0.415'' | 0.122'' | 0.130'' | 0.406'' | 0.421'' | 0.14cc/ft | 0.16cc/ft | 0.33cc/ft | 0.061lbs/ft | 656.2ft/ctn |
| 3.2mm | 10.5mm | 3.1mm | 3.3mm | 10.3mm | 10.7mm | 0.20cc/ft | 0.22cc/ft | 0.42cc/ft | 0.088kg/m | 5000px/ctn | |
| 3/16'' | 0.189'' | 0.492'' | 0.181'' | 0.197'' | 0.484'' | 0.500'' | 0.14cc/ft | 0.16cc/ft | 0.33cc/ft | 0.090lbs/ft | 590.5ft/ctn |
| 4.8mm | 12.5mm | 4.6mm | 5.0mm | 12.3mm | 12.7mm | 0.20cc/ft | 0.22cc/ft | 0.42cc/ft | 0.041kg/m | 4500px/ctn | |
● Low Expansion to improve brake caliper reaction time, reduce stopping distance and increase pedal feel
● Worldwide unique tracking line ORANGE-ORANGE-BROWN inside hose

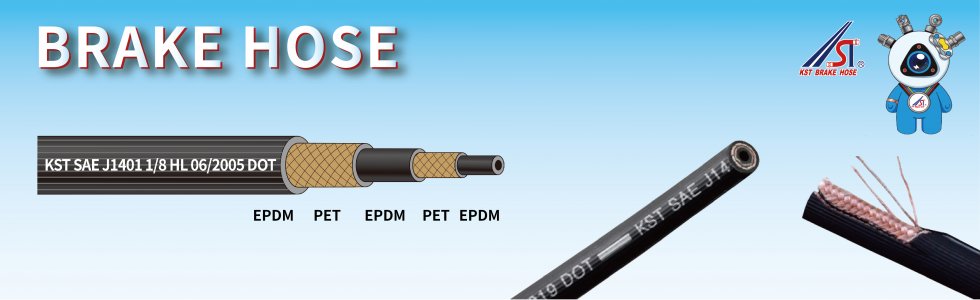

● Scientific and reasonable structure EPDM+PVA+EPDM+PET+EPDM with five layers
● First layer EPDM Outer Cover
* Good abrasion resistance
* Excellent ozone and UV resistance
* Excellent high and low temperature resistance
* High corrosion resistance and superior weather resistance
● Second layer PVA Outer braid
* Provide strong bond to outer cover and interleaf
* Good flexibility resistance
* Stable chemical performance ensures long service life
* Comprehensive performance ensures all test results excellent
● Third layer EPDM Middle Interleaf
* The interleaf prevents abrasion between two braided layers
* Increases resistance to water permeability
● Fourth layer Plyester (PET) Inner braid
* Provide a strong bond between the inner rubber and interleaf
* The bonding of all 5 layers results in a very low volumetric expansion
* Ensuring a positive and responsive feel when braking
● Fifth layer EPDM Inner Tube
* High performance in high and low temperature resistance range -50° C to 121°C,
* Suitable for brake fluids DOT 3, DOT 4, DOT 4 LV, DOT 5.1. etc
* Excellent resistance to non-petroleum based brake fluids as defined by SAE J1703 and SAE J1705
